Televes 494702, Coax Atmospheric Surge Lightning Arrestor Protector for Boss Antennas

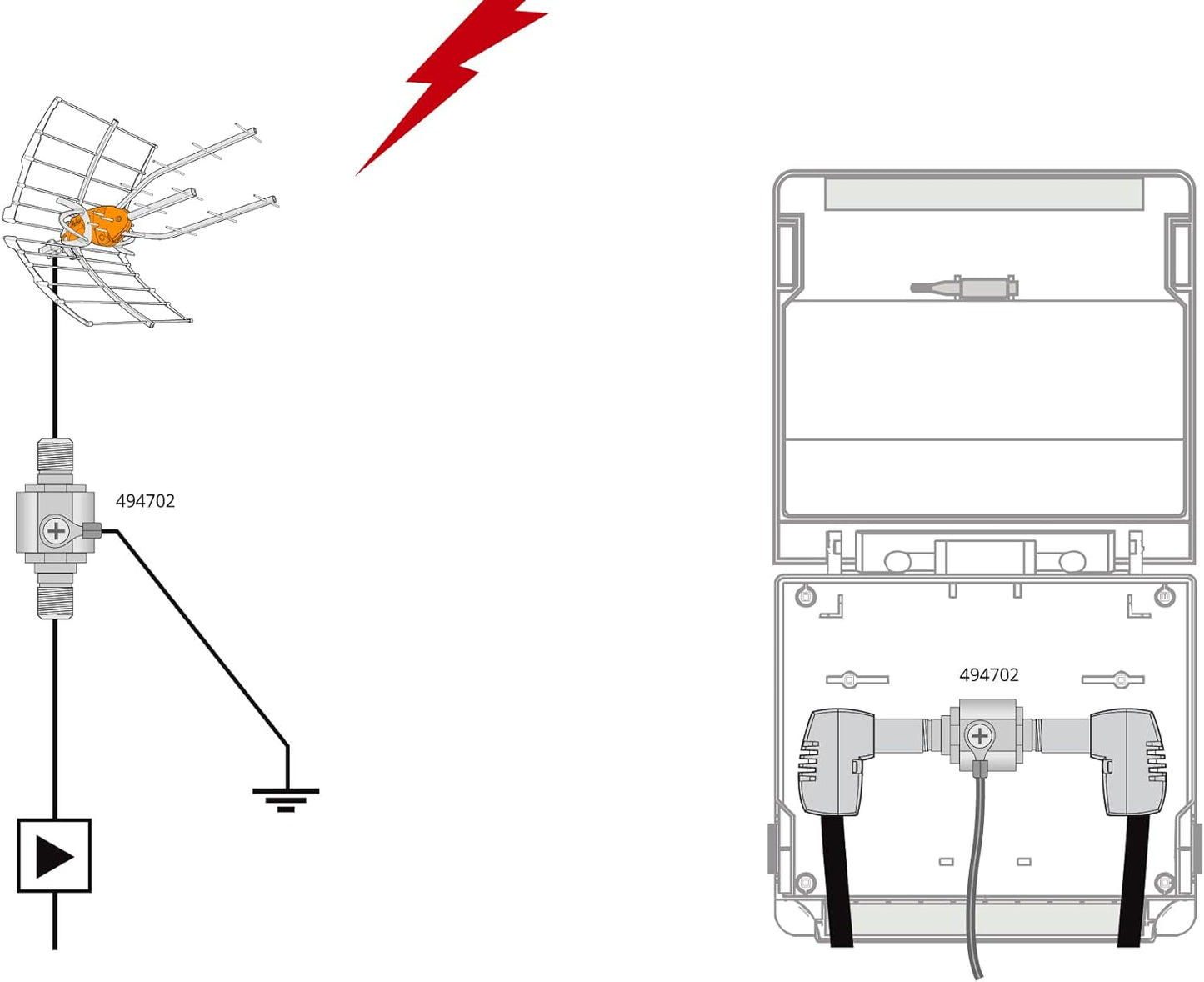

Atmospheric surge arrestor for BOSS antennas To be inserted in the coaxial cable, just after the antenna, in order to redirect to ground any lightning strikes that could damage the antenna.

Recommended installation inside an outdoor housing attached to the mast (ref. televes-4163). Requires a wire from the ground terminal of the arrestor to a solid ground connection (a ground rod or similar).

Features:

• Frequency range, passes 0 - 3000 MHz
• Insertion loss 0.1 - 0.3 dB
• Discharge voltage 90V
• Max. peak power (PEP) 200 W (Вт)
• Max. discharge current 10kA
• Connectors"F"
• Impedance 75 Ohm
• Operating temperature -40 ... 80 ºC
