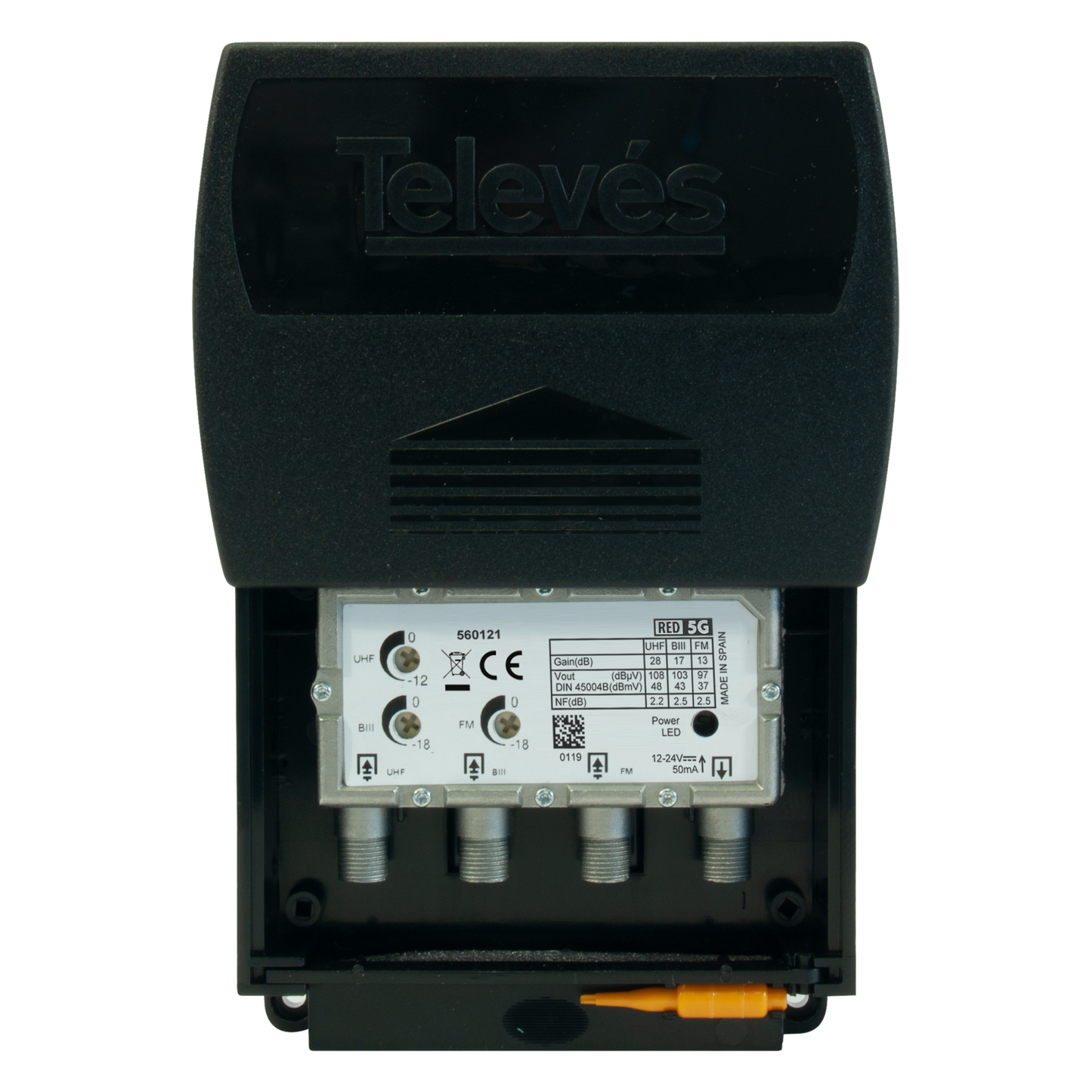

Televes 560121 Preamp/Preamplifier with LTE Filter for UHF/Hi-VHF/FM Band, 3 input, One Output

Televes 560121 -- Pre-Amp/Pre-amplifier, LTE Filter, 3 In, 17/30dB(V/U)

Requires a separate 12V power supply, NOT INCLUDED. Televes 550104 is a good choice.

Mast amplifier with BOSS-Tech

3 inputs: FM/Hi-VHF/UHF, FM Gain 13dB, VHF-Hi Gain 17dB, UHF Gain 28dB

Masthead amplifier for the amplification of terrestrial television signals coming from several antennas.
Equipped with 3 inputs, with amplification on all bands. The amplifier is powered through the output coaxial cable.

• Separate amplification and very low noise figure, thus respecting signal quality
• BOSS-Tech for UHF band: it automatically adjusts its own gain (UHF) based on normal fluctuations of the input signal in order to always provide the best output level.
• Manually-adjusted gain for FM and Hi-VHF band

• Can be powered in the 12 V-to-24 V range
• Fully automated manufacturing, subject to the most stringent quality controls
• High-screening Zamak chassis

• LTE700/5G filter to remove mobile phone interference
• "F" connectors

• Easy mounting. Equipped with a plastic tie for mast mounting
• Resistant ABS-plastic back case for outdoor installation

Click Here for Technical Specifications

Click Here for Data Sheet
